Barn doors have become a popular design choice in modern homes and commercial spaces due to their rustic charm and space-saving functionality. Double bypass barn doors, in particular, provide an elegant and practical solution for wide openings and tight spaces. However, to ensure a smooth and effortless operation, precise measurement is crucial when installing barn door hardware. In this guide, we will walk you through the steps of measuring for double bypass barn door hardware, including key dimensions, tools required, and common mistakes to avoid. By following these instructions, you'll be able to ensure a proper fit and achieve a professional-looking installation.
Before diving into the measurements, it's essential to understand what double bypass barn door hardware is and how it functions. Double bypass systems involve two barn doors that slide past each other on a single track, allowing you to cover a wider opening. This setup is especially useful for closets, large doorways, or rooms where space is limited.
The main components of a double bypass system include:
Tracks: A horizontal metal rail that guides the movement of the doors.
Rollers: Attached to the top of the doors, these rollers allow the doors to move smoothly along the track.

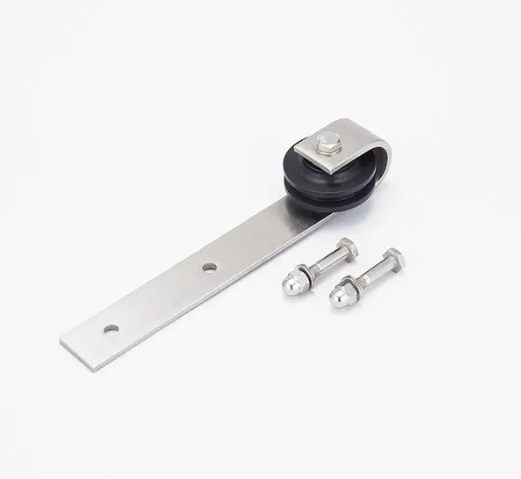

Hangers: The hardware that connects the door to the rollers, securing it to the track.
Stops: These prevent the doors from sliding off the track.
Guides: Installed at the bottom of the door, these guides ensure the doors stay aligned while opening and closing.
End Caps: Positioned at the ends of the track to prevent the rollers from sliding off.
Before you begin measuring, it's essential to gather the necessary tools. Here's a quick list of what you'll need:
Tape measure: For measuring the width and height of the door opening.
Level: To ensure the track is installed evenly and the doors operate smoothly.
Pencil or marker: For marking measurements on the wall and door.
Step ladder: If the track is being mounted high up on the wall.
Screwdriver or drill: For installation after measurement.
The first and most important measurement you need is the width of the door opening. For a double bypass system, the total width of the opening should accommodate both doors when they are in the fully open position.
Step 1: Measure the width of the door opening from one side to the other. If you're installing the doors on an existing frame, be sure to measure from the outer edges of the frame.
Step 2: To determine the correct door size, divide the total width by two. For example, if your opening is 72 inches wide, each door should be approximately 36 inches wide.
This ensures that the two doors will meet at the center and bypass each other without overlapping too much.
Next, you'll need to measure the height of the door opening to ensure the doors will fit properly when hung on the track.
Step 1: Measure from the floor to the top of the door frame or ceiling (if there is no frame). This measurement is the height of the door, and you should add a few extra inches to allow for the clearance needed for the rollers and hangers.
Step 2: Typically, you should add around 2-3 inches to the height of the door to ensure it operates smoothly. For example, if your door frame is 80 inches tall, the door should be 82-83 inches tall to account for the hardware.
The track length is critical for the double bypass system to function correctly. The track should be long enough to accommodate the total width of the two doors plus a bit of extra space for the end caps and stops.
Step 1: The track length should be approximately double the width of the opening, plus additional space for the end caps. For example, if your door opening is 72 inches, the track should be 144 inches, plus an additional 6-10 inches (for the stops and clearance).
Step 2: Check if you have any obstacles on the wall above the door (like light fixtures or crown molding) that could interfere with the track installation. You may need to adjust your measurements accordingly.
For smooth operation, your double bypass barn doors need to slide freely without obstruction. You need to allow for clearance at the top of the door to accommodate the track and the rollers.
Step 1: Measure the distance from the top of the door opening to the ceiling or the area where the track will be mounted. This will tell you how much space you have to install the track.
Step 2: The clearance required depends on the size of the rollers and hangers you are using. Typically, you need at least 2-3 inches of clearance above the door opening. If you're installing the track on a higher wall, you may need to adjust accordingly.
The final step in measuring for your double bypass barn doors is ensuring you have the necessary wall space to install the track properly. You will also need to account for the placement of the stops at the ends of the track.
Step 1: Measure the wall space where the doors will slide. You need enough space on both sides of the door opening for the doors to slide when open. Ideally, the track should extend past the door opening by at least 6 inches on each side.
Step 2: The stops, which prevent the door from sliding off the track, should be installed at both ends of the track. Ensure that you leave sufficient space to accommodate these stops without interfering with the door's movement.
Depending on your space and aesthetic preference, you can choose to mount the track on the wall or ceiling. Wall mounting is the most common, but ceiling mounting may be necessary if you have a vaulted ceiling or want to hide the hardware for a more seamless look.
The material of the track affects both the aesthetic and functionality of the doors. Tracks can be made from:
Steel: Sturdy and durable, suitable for heavy doors.
Aluminum: Lighter and more affordable, ideal for smaller doors.
Wood: Provides a rustic or industrial look but may require more maintenance.
Accurate measurement is key to installing double bypass barn door hardware successfully. By taking the time to measure the width, height, and clearance of the door opening, you can ensure that the hardware fits perfectly and operates smoothly. The right measurements guarantee a seamless installation and long-lasting performance, transforming your space with functional and stylish barn doors.
If you're looking to purchase high-quality barn door hardware, Shijiazhuang Shuorui Imp&Exp Co., Ltd offers a wide range of durable, easy-to-install hardware options for your next project. Our products are designed to meet your specific needs, helping you create the perfect barn door system for your space. Reach out to us for more information, and let us guide you through the process of selecting the best hardware for your barn door installation.
Measure the total width of the door opening and divide it by two to determine the size of each door. Ensure the track is long enough to accommodate both doors and allow for proper clearance.
Measure from the floor to the top of the door frame or ceiling, and add 2-3 inches to allow for the rollers and hangers. This ensures smooth door movement.
Typically, a clearance of 2-3 inches above the door opening is required to accommodate the track and rollers. Make sure the clearance is sufficient for smooth operation.
Yes, you can choose to mount the track on the ceiling if needed. This is particularly useful for spaces with vaulted ceilings or for a more hidden hardware aesthetic.
Tracks are available in steel, aluminum, and wood. Steel is durable and ideal for heavy doors, while aluminum is lighter and more affordable for smaller doors.
